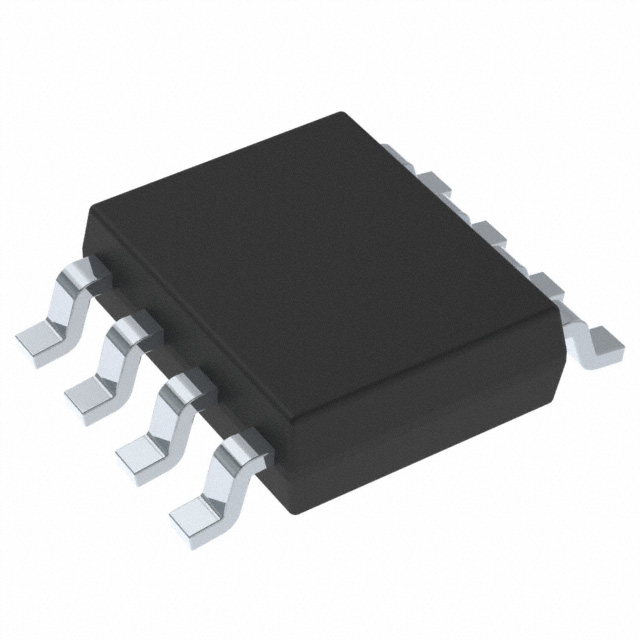

OPA2211AIDDAR

Specifications

Width: 3.9 mm
Height: 1.48 mm
Length: 4.89 mm
Features: Shutdown, Small Size
Technology: SiGe Bipolar
Output Type: Rail-to-Rail
Supply Type: Single, Dual
Unit Weight: 70.600 mg
Amplifier Type: Low Power Amplifier
Mounting Style: SMD/SMT
SR - Slew Rate: 27 V/us
Voltage Gain dB: 114 dB
Number of Channels: 2 Channel
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Supply Voltage - Max: 36 V
Supply Voltage - Min: 4.5 V, +/- 2.25 V
Ib - Input Bias Current: 60 nA
Operating Supply Current: 3.6 mA
Operating Supply Voltage: 4.5 V to 36 V, +/- 2.25 V to +/- 18 V
Vcm - Common Mode Voltage: +/- 1.4 V
Output Current per Channel: 45 mA
Vos - Input Offset Voltage: 50 uV
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 2.25 V
GBP - Gain Bandwidth Product: 80 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
In - Input Noise Current Density: 3.2 pA/sqrt Hz
en - Input Voltage Noise Density: 1.1 nV/sqrt Hz
CMRR - Common Mode Rejection Ratio: 120 dB
PSRR - Power Supply Rejection Ratio: 140 dB
