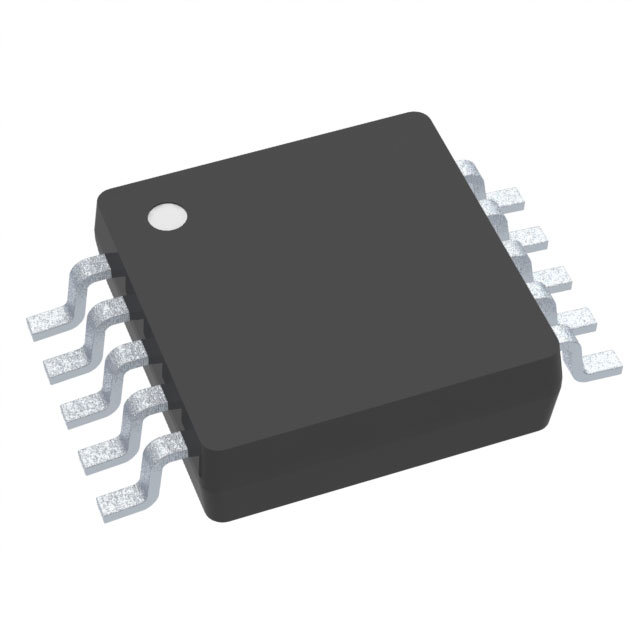

INA226AIDGSR

Specifications

Accuracy: 0.1 %
Features: Alert Function, Bi-directional, Low-side Capable
Bandwidth: 7 kHz
Unit Weight: 33.100 mg
Mounting Style: SMD/SMT
Sensing Method: High or Low Side
Development Kit: INA226EVM
Moisture Sensitive: Yes
Input Voltage Range: 0 V to 36 V
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.7 V
Operating Supply Current: 420 uA
Operating Supply Voltage: 2.7 V to 5.5 V
Vos - Input Offset Voltage: 10 uV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
