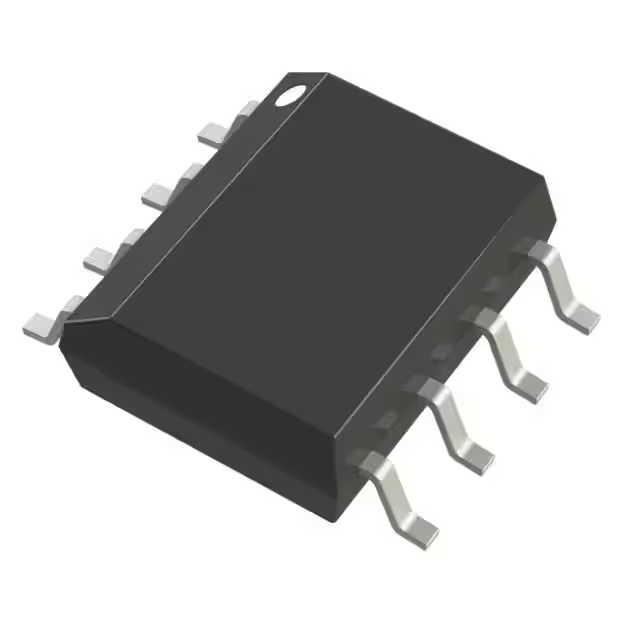

ADM706SARZ

Specifications

Width: 4 mm
Height: 1.5 mm
Length: 5 mm
Output Type: Active Low, Push-Pull
Unit Weight: 540 mg
Manual Reset: Manual Reset
Mounting Style: SMD/SMT
Watchdog Timers: Watchdog
Reset Delay Time: 200 ms
Threshold Voltage: 2.93 V
Chip Enable Signals: No Chip Enable
Power Fail Detection: Yes
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.75 V
Overvoltage Threshold: 3 V
Pd - Power Dissipation: 470 mW
Undervoltage Threshold: 2.85 V
Battery Backup Switching: No Backup
Operating Supply Current: 250 uA
Number of Inputs Monitored: 1 Input
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
