HongYang Co., Ltd.

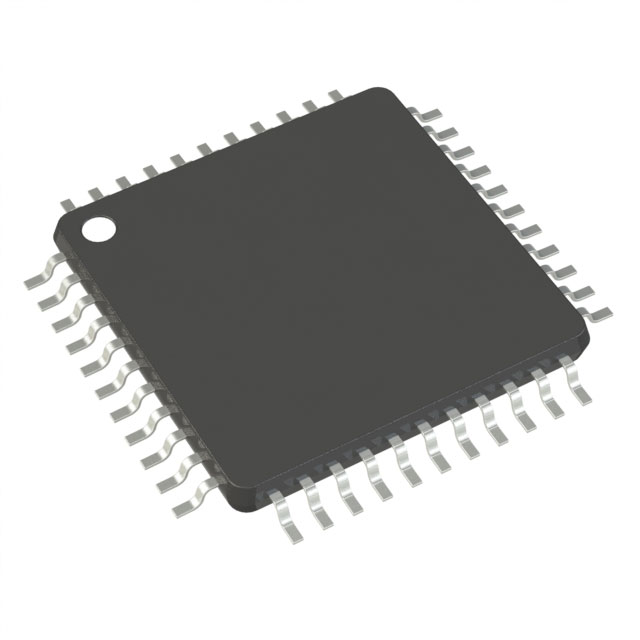

PIC18F458-I/PT
Manufacturer: Microchip Tech
Package/Case: TQFP-44(10x10)
Description:4.2V~5.5V 40MHz 1.5KB FLASH 32KB Brown-out Detect/Reset,LVD,POR,PWM,WDT external 33 1 4.2V 5.5V 40MHz CANbus，I2C，SPI，UART，USART 256 x 8 A/D 8x10b 8bit PIC TQFP-44 SMD mount 10mm*10mm*1mm
Products
Products DETAILS
PIC18F458-I/PT
Specifications
Core: PIC18
Width: 10 mm
Height: 1 mm
Length: 10 mm
Unit Weight: 1.191 g
Data RAM Size: 1.5 kB
Data ROM Size: 256 B
Data ROM Type: Flash
ADC Resolution: 10 bit
Data Bus Width: 8 bit
Interface Type: I2C, SPI, USART
Mounting Style: SMD/SMT
Number of I/Os: 33 I/O
Processor Series: PIC18
Moisture Sensitive: Yes
Program Memory Size: 32 kB
Program Memory Type: Flash
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.2 V
Number of ADC Channels: 8 Channel
Maximum Clock Frequency: 40 MHz
Number of Timers/Counters: 4 Timer
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
